FOIL DRIVE Assist Slim (Base Kit)

This is a Base Kit of a Assist Slim only, with no motor or battery included.

• DOES NOT INCLUDE BATTERY
• DOES NOT INCLUDE A MOTOR

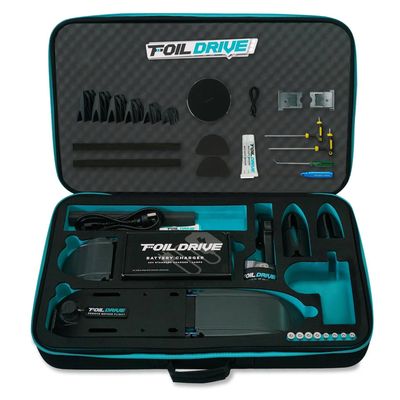

WHAT'S INCLUDED:

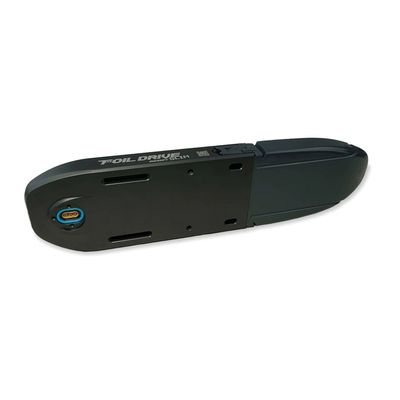

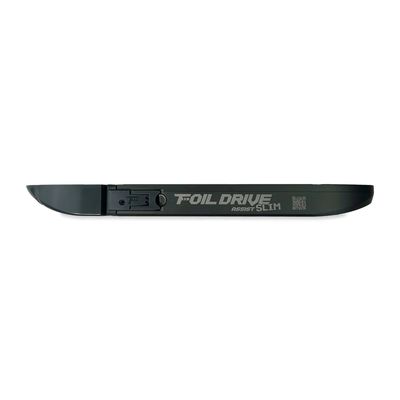

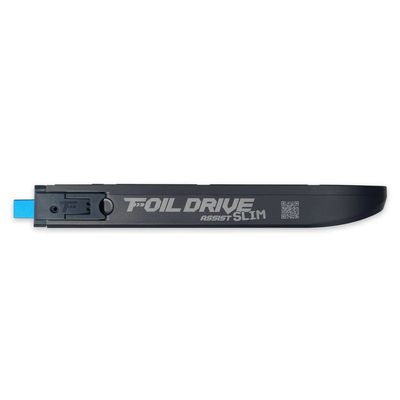

• Foil Drive Assist Slim Electronics Box
• Motor Plug Protector with Keychain
• Foil Drive Nose Cone C
• Foil Drive Nose Cone D
• Foil Drive Universal Motor Pod - Rear
• Foil Drive Universal Motor Pod - Short Nose
• Foil Drive Universal Motor Pod - Long Nose
• Foil Drive Universal Mast Adaptor
• Foil Drive v2 Wireless Throttle Controller
• Foil Drive Controller Wrist Strap
• Foil Drive Mast Cable Guide 23cm
• Foil Drive Controller Wireless Charge Pad
• Micro USB Cable
• 40v Standard Foil Drive Charger 4amp
• Power Lead (AU, US or EU)
• 4x Mast Track Foam Inserts
• 2x Nose Cone Rocker Pad
• 2x Battery Grease
• 4x M8 Assist Slim Mast Plate Bolts 60mm
• 4x M6 Assist Slim Mast Plate Bolts 60mm
• Foil Drive 2.5mm Driver
• Torx T40 Tee Handle Driver
• Torx T30 Tee Handle Driver
• Foil Drive Cleaning Cloth

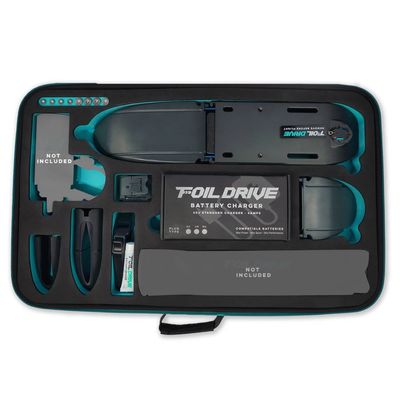

• Foil Drive Gen2 Carry Case

Foil Drive Mounting Bolt Bag

• 4x M8 Locking Tee Nuts
• 4x M6 Locking Tee Nuts
• 4x M3 x 20mm Bolts for Locking Tee Nuts
• 2x M3 x 16mm Latch Locking Bolts

Foil Drive Motor and Pod Bolts Bag

• 4x Motor Pod Bolts (M3 x 12mm)
• 3x Puck Bolts (M3 x 12mm)
• 3x Motor Plug Bolts (M4 x 10mm)

Spare Parts Bag

• 2x O-Ring Seals - Foil Drive Assist Slim
• 2x Latch Assembly - Foil Drive Assist Slim
• 3x Motor Plug Bolts (M3 x 12mm)
• 4x Motor Pod Bolts/Puck Bolts (M3 x 12mm)
• 2x Latch Locking Bolts (M3 x 16mm)
• 2x Propeller Bolts (M3 x 30mm)
• 2x Latch Pivot Bolts (M3 x 45mm)

COMPATIBLE WITH:

• Assist Slim

TECH SPECS:

• Max Thrust: 25.5kg (56.2lbs)
• Weight Range: 2.3-2.8 (5.0-6.1lbs)
• Dimensions with Longer C Battery: L510 x W250 x H35mm
• Dimensions with Short D Battery: L415 x W250 x H50mm
• App compatibility: Foil Drive app, Android and IOS
