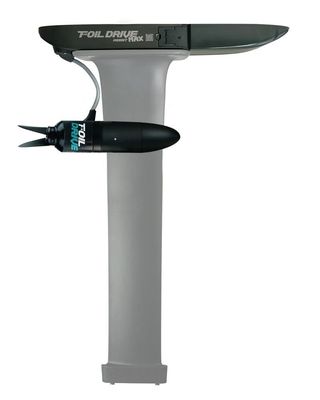

FOIL DRIVE Assist Max Sport Kit

The Foil Drive Assist MAX is the flagship model, for the ultimate in hybrid electric assist foiling. As the name suggests, the Assist MAX offers the maximum thrust, run time and versatility!

The kit includes everything you need to turn your existing hydrofoil and board into an electric assisted foiling machine:

• MAX Sport Battery
• Universal Mast Adaptor that suits 99% of foil masts available
• V2 Motor with fixed cable length available 15, 20, 25, 60 & 70cm
• Bluetooth Connectivity to the Foil Drive Mobile App

NB: Boards with Carbon Tracks may experience connectivity issues.
See our External Antenna

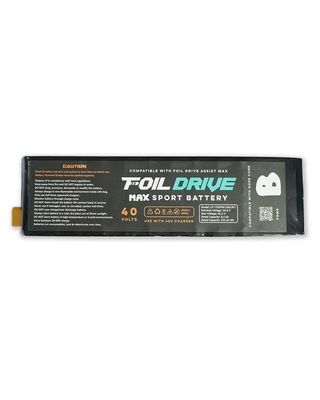

FOIL DRIVE MAX SPORT BATTERY

The Foil Drive MAX Sport Battery is the smaller, lighter MAX battery with 332 Wh capacity. This offers Assist MAX users the ability to reduce the weight of their install for those riders looking for ultimate performance at the cost of reduced runtime.

As with all Gen2 Foil Drive batteries, the MAX Sport Battery is certified IP68 rated for increased protection and peace of mind against water and dust.

The single power plug contains larger connectors that provide power to the Foil Drive unit and smaller connectors for charging the battery. The included dust cap provides extra protection during storage & transport.

Only compatible with Foil Drive Assist MAX.

SPECIFICATIONS:

Nominal Voltage: 39.6 V
Max Voltage: 46.2 V
Rated Capacity:  8.4 Ah
Rated Capacity: 332.64 Wh
Battery Weight: 1.85kg (4lbs)
Certifications: UN, CE, IP68

WHAT'S INCLUDED:

Foil Drive Assist Max Base Kit
Max Sport Battery with Lipo Bag
V2 Standard Motor with fixed cable length
Foil Drive Assist MAX Electronics Box
Motor Plug Protector with Keychain
Foil Drive Nose Cone A
Foil Drive Nose Cone B
Foil Drive Universal Motor Pod - Rear
Foil Drive Universal Motor Pod - Short Nose
Foil Drive Universal Motor Pod - Long Nose
Foil Drive v2 Wireless Throttle Controller
Foil Drive Controller Wrist Strap
Foil Drive Mast Cable Guide 23cm
Foil Drive Controller Wireless Charge Pad
Micro USB Cable
40v Standard Foil Drive Charger 4amp
2x Mast Track Foam Inserts
2x Nose Cone Rocker Pad
2x Battery Grease
4x M8 Assist MAX Mast Plate Bolts 80mm
4x M6 Assist MAX Mast Plate Bolts 80mm
Foil Drive 2.5mm Driver
Pick Tool
Torx T40 Tee Handle Driver
Torx T30 Tee Handle Driver
Foil Drive Cleaning Cloth
Foil Drive Gen2 Carry Case

Foil Drive Mounting Bolt Bag
- 4x M8 Locking Tee Nuts
- 4x M6 Locking Tee Nuts
- 4x M3 x 20mm Bolts for Locking Tee Nuts

Foil Drive Motor and Pod Bolts Bag
- 4x Motor Pod Bolts (M3 x 12mm)
- 3x Puck Bolts (M3 x 12mm)
- 3x Motor Plug Bolts (M4 x 10mm)

Spare Parts Bag
- 2x O-Ring Seals - Foil Drive Assist MAX
- 2x Latch Assembly - Foil Drive Assist MAX
- 3x Motor Plug Bolts (M4 x 10mm)
- 7x Motor Pod Bolts/Puck Bolts (M3 x 12mm)
- 4x Latch Locking Bolts (M3 x 16mm)
- 2x Propeller Bolts (M3 x 30mm)
- 2x Latch Pivot Bolts (M3 x 45mm)
