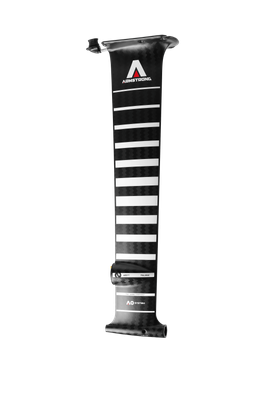

ARMSTRONG FOIL DRIVE E-Foil Integrated Carbon Mast

Seamless power assist meets signature Armstrong feel.
Fully Integrated, freakishly smooth.

Meet the next evolution in powered foiling. The E-Foil mast drops the motor pod to 650mm for consistent submersion and full-time motoring. Engineered with a forward-set motor pod for smoother lift and reduced drag, this mast delivers that signature Armstrong feel with electric acceleration and zero clutter.

Whether you’re catching your first flights, cruise harbours or exploring new coastlines, turn windless days into all-time sessions with the unmistakable Armstrong precision and feel.

Please note: Foil Drive Motor and Battery are not included with the mast. To complete the Armstrong Foil Drive Kit, check out the bundle here.

SPECIFICATIONS:

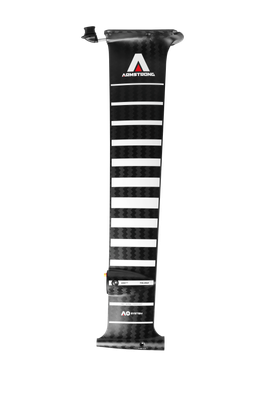

Length: 795mm
Pod Height: 650mm

KEY FEATURES:

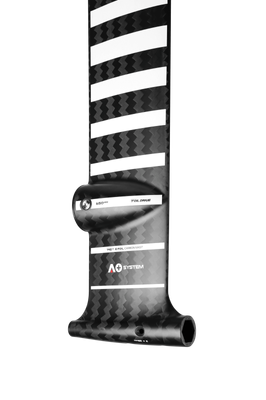

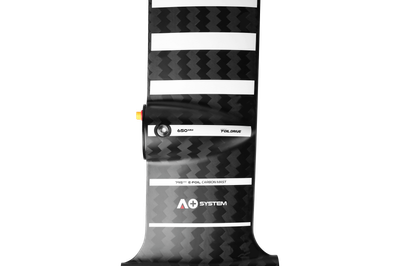

Pod Height - Positioned for full time power
Meet the next evolution in powered foiling. Purpose-built for consistent submersion and effortless power delivery. The E-Foil mast drops the motor pod to 650mm for consistent submersion and full-time motoring.

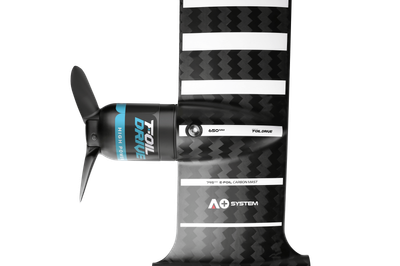

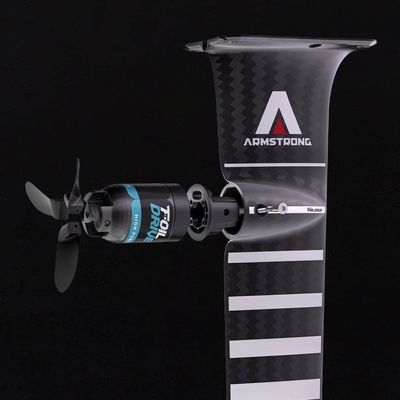

Full integrated for efficiency - From take offs to touch downs

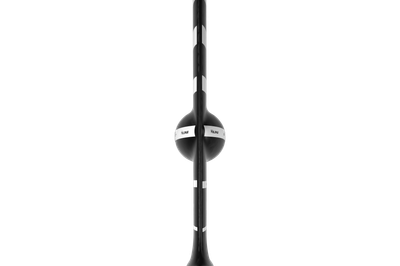

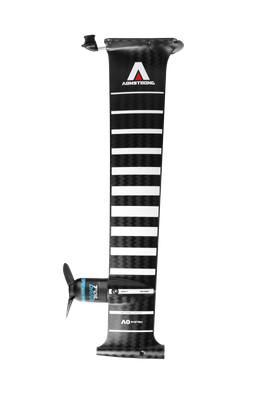

The motor pod is positioned further forward than typical integrations, reducing drag at the front end and enhancing lift from the prop. The result? Seamless acceleration and a noticeably smoother ride when powering up.

Design - Industry-leading Performance
This mast uses the same layup and design DNA as our industry-leading Performance Carbon
Mast meaning you get high stiffness, low flex, and ultra-precise feedback whether you’re
pumping through bumps or carving through sections.

Construction - Built the Armstrong Way
Manufactured with Toray high modulus carbon fiber and finished to the same spec as our
Performance Masts, this mast is built to handle real-world torsional loads without flinching.
Premium construction meets plug-and-play practicality for Foil Drive riders.

A+System - The ultimate modular foil assembly system.
The A+ System is our proprietary foil assembly designs that join the mast, fuselage, front foil,
and stabilizer with a hexagonal tapered fit into the front foil. This design is incredibly strong,
torsionally rigid, and durable when combined with our material selection. Paired with our
premium titanium and stainless steel hardware, corrosion is minimized and the whole
package has an industry-leading fit and finish.

WHAT'S INCLUDED:

• Protective Cover
• Hardware
• T30 Torx Tool

Puck Hardware

• (4x) M4 10mm 316 Dome Head Screw
• (1x) M5 52mm Titanium CSK Screw
• (1x) M5 20mm Titanium Barrel Nut

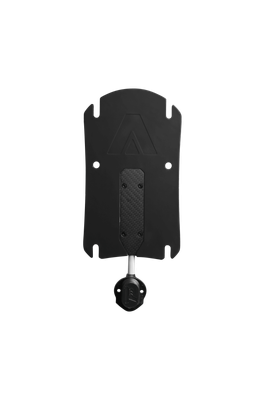

Mast Top Hardware

• (2x) M8 16mm 316 Titanium Coating CSK Screw (T40 torx head)

Mast Bottom Hardware

• (3x) M6 28.5mm CSK Screw
• (1x) M6 Titanium Barrel Nut

EXCLUDED:

• Foil Drive Motor

Hardware

• 4 x M7 79mm Titanium Mast Top Screws
• 4 x Titanium T-Nuts

FOIL DRIVE – REQUIRED PARTS:

To build a complete Armstrong x Foil Drive Kit

Motor:
FD255 - Integrated Mast High Power Motor
(Includes: Rotor, Stator, hub and Three Blade Propellers)

System:
FD100 - Assist MAX Base Kit
(Note: The mast is also compatible with the Slim)

Battery:
FD213 - Assist MAX High Power Battery
(Note: Other battery options available and do vary depending on which system you select)

COMPATIBILITY

Only V2 motors will work with the mast.
Compatible with Standard and High Power Motors.
Compatible with two blade props.
The Armstrong carbon masts will NOT be compatible with any Gen1 Foil Drive Systems
(Assist or Assist PLUS).

COMPATIBLE WITH:

• Asist Max
• Assist Slim

INSTALLATION GUIDE HERE

Note: Images for display purposes only
