FOIL DRIVE Assist Max High Power + Armstrong Integrated E-Foil Carbon Mast Complete

All the required Foil Drive components to go with an Armstrong Carbon Integrated Mast.

COMPLETE E-FOIL KIT INCLUDES:

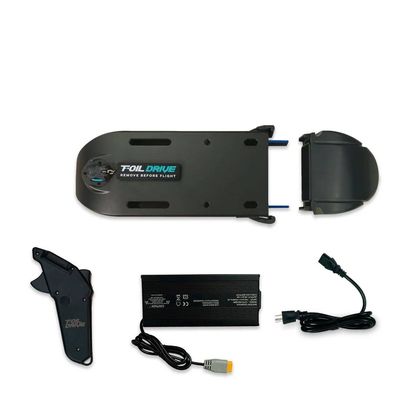

• Foil Drive Assist MAX Base Kit
• Choice of Battery: Max High Power Battery or Max Power Battery
• Armstrong Integrated Carbon Mast Foil Assist. Length 795mm, Pod Height 650mm
• Integrated Mast High Power Motor

The Foil Drive Assist MAX is the flagship model, for the ultimate in hybrid electric assist foiling. As the name suggests, the Assist MAX offers the maximum thrust, run time and versatility!

This advanced motor is designed for riders who demand more torque, thrust, and runtime, delivering peak performance without compromising compatibility. Through improved efficiency, riders can experience up to 19% more runtime.

Paired with the MAX High Power Battery, riders gain the 19% added capacity of the battery. This means, with the High power Battery AND the High power Motor, riders can experience 40-45% more runtime!

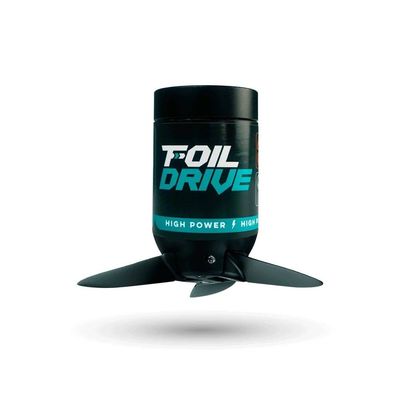

Key Benefits of the High Power V2 Motor

• Unmatched Low-End Torque: Perfect for heavier riders or smaller boards or foils, the High Power Motor delivers effortless take-offs with power to spare. Longer Runtimes: Thanks to its superior torque, you’ll need less throttle input, giving you significantly extended ride times.
• Increased Thrust: Feel the extra push when you need it most—more thrust means more versatility across all foiling disciplines. Smoother, Quieter Performance: Enjoy a seamless ride with enhanced efficiency and reduced noise.
• Just 10mm longer and 160g heavier than the Standard v2 Motor, the performance gains make it a game-changer despite the larger size. It’s like fine-tuning your wing or board for optimal results!
• Seamless Compatibility. The High Power Motor is fully compatible with your Gen2 setup, requiring the v2 Removable Cable and v2 Puck.

NB: Boards with Carbon Tracks may experience connectivity issues.

See our External Antenna

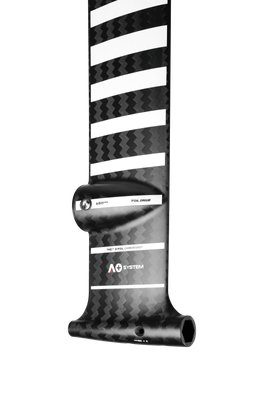

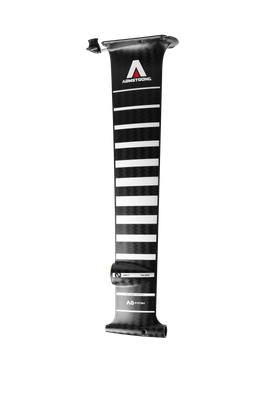

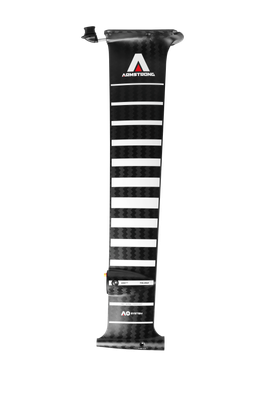

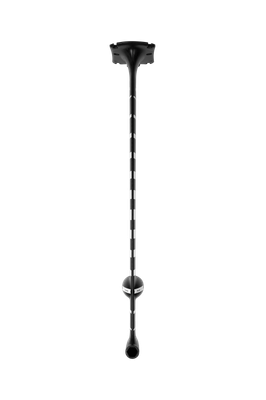

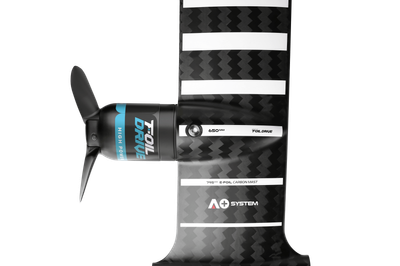

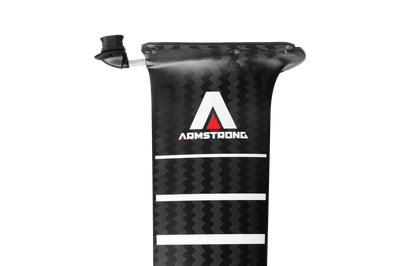

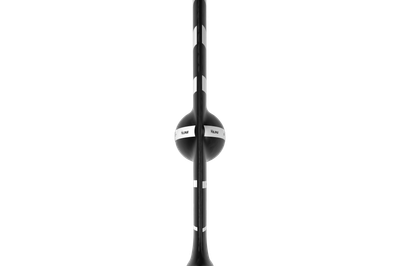

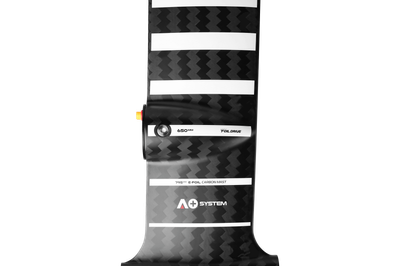

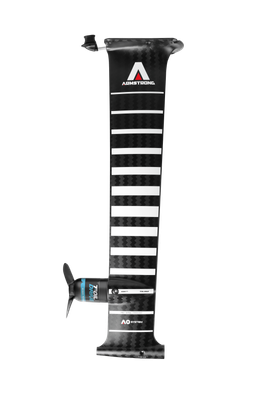

ARMSTRONG E-FOIL INTEGRATED CARBON MAST

Seamless power assist meets signature Armstrong feel.
Fully Integrated, freakishly smooth.

The Armstrong Foil Drive Integrated Foil Assist Carbon Mast redefines what’s possible with powered foiling. Unlike standard integrated systems, this setup is purpose-built to reduce drag and unlock a smoother ride from takeoff to touchdown.

For beginners, that means easier lift and no more sudden stalls when the motor pod hits the water. For advanced riders, it’s seamless wave performance, which can glide through without experiencing drag or stopping abruptly, unlike with standard designs, where hitting the motor pod can cause you to bog.

Whether you’re chasing bumps on windless days or just starting out, it turns small waves into endless sessions with unmatched performance.

INSTALLATION GUIDE HERE

WHAT'S INCLUDED:

*Choice of Battery with Lipo Bag*

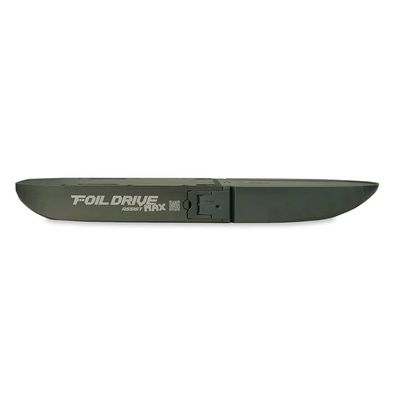

Foil Drive Assist MAX Electronics Box
Armstrong Integrated Mast
Integrated Mast High Power Motor
3 Blade Propeller Hub Set

Motor Plug Protector with Keychain
Foil Drive Nose Cone A
Foil Drive Nose Cone B
Foil Drive Universal Motor Pod - Rear
Foil Drive Universal Motor Pod - Short Nose
Foil Drive Universal Motor Pod - Long Nose
Foil Drive v2 Wireless Throttle Controller
Foil Drive Controller Wrist Strap
Foil Drive Mast Cable Guide 23cm
Foil Drive Controller Wireless Charge Pad
Micro USB Cable
40v Standard Foil Drive Charger 4amp
2x Mast Track Foam Inserts
2x Nose Cone Rocker Pad
2x Battery Grease
4x M8 Assist MAX Mast Plate Bolts 80mm
4x M6 Assist MAX Mast Plate Bolts 80mm
Foil Drive 2.5mm Driver
Pick Tool
Torx T40 Tee Handle Driver
Torx T30 Tee Handle Driver
Foil Drive Cleaning Cloth

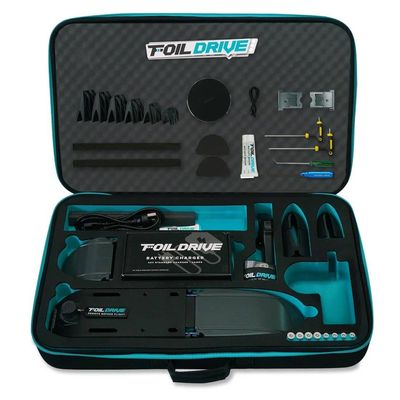

Foil Drive Gen2 Carry Case

Foil Drive Mounting Bolt Bag
- 4x M8 Locking Tee Nuts
- 4x M6 Locking Tee Nuts
- 4x M3 x 20mm Bolts for Locking Tee Nuts

Foil Drive Motor and Pod Bolts Bag
- 4x Motor Pod Bolts (M3 x 12mm)
- 3x Puck Bolts (M3 x 12mm)
- 3x Motor Plug Bolts (M4 x 10mm)

Spare Parts Bag
- 2x O-Ring Seals - Foil Drive Assist MAX
- 2x Latch Assembly - Foil Drive Assist MAX
- 3x Motor Plug Bolts (M4 x 10mm)
- 7x Motor Pod Bolts/Puck Bolts (M3 x 12mm)
- 4x Latch Locking Bolts (M3 x 16mm)
- 2x Propeller Bolts (M3 x 30mm)
- 2x Latch Pivot Bolts (M3 x 45mm)

COMPATIBLE WITH:

• MAX Power Battery
• MAX Sport Battery
• MAX Travel Battery
• Universal Motor Systems for Gen2 v2

TECHNICAL SPECIFICATIONS:

• Max Thrust: 27.5kg (60.6lbs)
• Total Install Weight: 4.8-5.8kg (10.5-12.7lbs)
• Dimensions with Long A Nose Cone: L525 x W125 x H50mm
• Dimensions with Short B Nose Cone: L415 x W250xH50mm
• App compatibility: Foil Drive app, Android and IOS

FOIL DRIVE BATTERY:

• MAX Sport: 332.64 Wh
• MAX Power: 498.69 Wh
• MAX High Power: 594 Wh

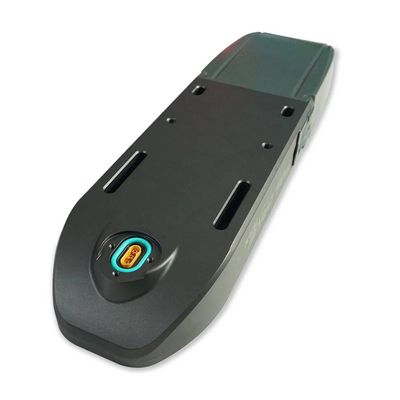

FOIL DRIVE MAX HIGH POWER BATTERY

Take your foiling to unprecedented heights with the MAX High Power Battery, the ultimate evolution in our High Power Range, designed exclusively for the Assist MAX System. Utilizing cutting-edge battery technology, this powerhouse packs significantly more capacity into the same compact size as the current MAX Power Battery, just 100g heavier.

With 19% added capacity of the Battery, PLUS the added efficiency of the High Power Motor, combined a rider can see up to 40-45% runtime increase!
This battery isn’t just an upgrade—it’s a revolution. Experience the perfect blend of compact design, lightweight construction, and maximum performance to elevate every foiling session.

SPECIFICATIONS:

• Voltage: 40V
• Nominal Voltage: 39.6V
• Max Voltage: 46.2V
• Rated Capacity: 15Ah
• Rated Capacity: 594Wh
• Max Boost: 24% at 18 Seconds, 28% at 16 Seconds
• Max Boost Time: 18 Seconds
• Battery Weight: 2.8kg (6.1lbs)
• Certifications: UN, CE, IP68
• Battery Dimensions (As is, not in case): 420 x 75 x 40mm
• Nose Cone: A

FOIL DRIVE MAX POWER BATTERY

The Foil Drive MAX Power Battery with 498Wh capacity.

As with all Gen2 Foil Drive batteries, the MAX Power Battery is certified IP68 rated for increased protection and peace of mind against water and dust.

The single power plug contains larger connectors that provide power to the Foil Drive unit and smaller connectors for charging the battery. The included dust cap provides extra protection during storage & transport.

Only compatible with Foil Drive Assist MAX.

SPECIFICATIONS:

• Nominal Voltage: 39.6 V
• Max Voltage: 46.2 V
• Rated Capacity: 12.6 Ah
• Rated Capacity: 498.96 Wh
• Battery Weight: 2.65kg (5.84lbs)
• Certifications: UN, CE, IP68

FOIL DRIVE MAX SPORT BATTERY

The Foil Drive MAX Sport Battery is the smaller, lighter MAX battery with 332 Wh capacity. This offers Assist MAX users the ability to reduce the weight of their install for those riders looking for ultimate performance at the cost of reduced runtime.

As with all Gen2 Foil Drive batteries, the MAX Sport Battery is certified IP68 rated for increased protection and peace of mind against water and dust.

The single power plug contains larger connectors that provide power to the Foil Drive unit and smaller connectors for charging the battery. The included dust cap provides extra protection during storage & transport.

Only compatible with Foil Drive Assist MAX.

SPECIFICATIONS:

• Nominal Voltage: 39.6 V
• Max Voltage: 46.2 V
• Rated Capacity:  8.4 Ah
• Rated Capacity: 332.64 Wh
• Battery Weight: 1.85kg (4lbs)
• Certifications: UN, CE, IP68
