AXIS Pump and Glide (PNG) Front Wings
Axis
Sale $942.00 $659.40
DEMO: Keen to Demo before buying? Please inquire about our demo rent to buy options.
The "Glide Series" wings are designed to be easy and early to lift for their size. The have tons of control, and feel comfortable for most levels of riding. Our Glide wings pump unreal, and glide effortlessly and endlessly. And they are fast wings, but their focus is not to be the fastest wing on the market. But instead, to be the easiest high aspect wing that almost everyone can ride, and can improve their level of riding right away.

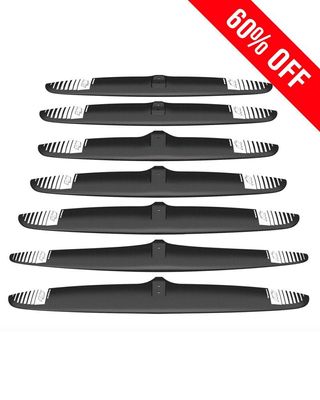

The AXIS 1310, 1300, 1150, 1010 and 910B form our "Glide Series" wing family.
All front wings include a padded cover.
PNG 1310 Front Wing (NEW)
Introducing the ultimate pumping front wing. The Pump and Glide, PNG, 1310.
The strength and stiffness of our AXIS Power Carbon and Power Carbon High Modulus Masts have opened up the potential for developing wings we could only dream about prior to our development and testing cycles for these new masts. Originally the PNG1310 was designated the Ultimate Pumping Machine, and it certainly proved its point in getting Hugo Wigglesworth to smash all standing pump records with an unprecedented 17+ minute masterclass.
However, in further testing, it proved so much more. The PNG1310 is an amazing light wind/big guy front wing. Our team riders were amazed at its ability to get going in almost no wind and provided the possibility to drop the wing at their side at will and simply pump upwind.
What makes the PNG1310 work isn't simply its span. We have completely redesigned the PNG foil section for the PNG1310 with a focus on maximizing the performance and glide of this massive front wing.
Technical Data:
- WINGSPAN: 1310 mm / 51.6 inches
- MAX CHORD: 185mm, 7.3inches
- ASPECT RATIO: 8.53
- ACTUAL AREA 2080 square cm / 322 square inches
- PROJECTED AREA: 2011 square cm / 311.7 square inches
- VOLUME: 2445 cubic cm / 149 cubic inches
PNG 1300 Front Wing
The 1300 is the biggest wing of the PNG collection. It's actually the biggest wing across any other wing on the market with the longest wingspan in the industry. We wanted a wing that will lift very very early, and would glide endlessly, w/out slowing down.
The AXIS S-Series 1300 wing was designed to dominate the smallest foiling conditions. From the lightest wind WING Surfing, to tiny bumps SUP and SURF foiling, and effortless lift behind the BOAT, the AXIS 1300 performs like no other high aspect wing ever dreamed of. The amount of glide and pumping ability of the AXIS 1300 is tremendous. This is a very high aspect ratio wing. at nearly 10 Aspect Ratio, this is a very special wing, designed for endless glides.
The AXIS S-Series 1300 carbon wing connects to the S-Series fuselages with 3 x M8, 20mm screws. At 1300mm wingspan the AXIS 1300 is a massive wing, over twice as stiff as the 1010, benefiting from the AXIS S-Series rigidity and stiffness of engineering and construction.
Technical Data:
- WINGSPAN: 1300 mm / 51 inches
- MAX CHORD: 180mm, 7inches
- ASPECT RATIO: 9.94
- ACTUAL AREA 1712 square cm / 265 square inches
- PROJECTED AREA: 1700 square cm / 263 square inches
- VOLUME: 1895 cubic cm / 116 cubic inches
Recommended use:
- WING Surfing for all levels and the lightest possible conditions
- Downwinding - Lightest wind / smaller waves
- SUP / Surf - Tiny bumps and endless gliding
- Wake foiling - Early lift / easiest pumpPump Foiling - Endless
- Windsurf foiling - very early and super easy lift
Suggested Rear Wing:
- S-Series 500 Carbon for max control and stability (entry levels)
- S-Series 460 Carbon for high speed and loose turning (advanced)
- S-Series 420 Carbon for the ultimate performance (speed and turning - intermediate +). One of our favorite rear wings for max speed.
- S-Series 440 Carbon for control and stability (all levels)
- S-Series 400 Carbon for looser feel and carvy turns while still maintaining good amount of control (Intermediate)
- S-Series 390 Carbon for Wing and Surf with good turning control and additional glide
- S-Series 370 Carbon for loose feel and fast turning, with less stability (intermediate). The rear wing that does it all - One of our favorite wings for the HPS series front wings.
- S-Series 340 Carbon for even looser feel and even less drag and more speed. (advanced)
- S-Series 500 anhedral Carbon specific to windsurf foiling
PNG 1150 Front Wing
The 1150 is the biggest wing of the Glide collection. It's in fact the longest wingspan wing we have ever made! We wanted a wing that will lift very very early, and would glide endlessly, w/out slowing down.
The AXIS S-Series 1150 wing was designed to dominate the smallest foiling conditions. From light wind WING Surfing, to tiny bumps SUP and SURF foiling, to effortless lift behind the BOAT, and DOCK starts and PUMPING, the AXIS 1150 performs like no other high aspect wing ever dreamed of. The amount of glide and pumping ability of the AXIS 1150 is tremendous. And probably this is why our testers nominated the AXIS 1150 as the WING SURFING wing.
The AXIS S-Series 1150 carbon wing connects to the S-Series fuselages with 3 x M8, 20mm screws. At 1150mm wingspan the AXIS 1150 is a massive wing, nearly twice as stiff as the 1010, benefiting from the AXIS S-Series rigidity and stiffness of engineering and construction.
As with every AXIS front wing, the graphics on the wings give you all possible measurements so you can best compare and also quickly swap pieces or get new accessories for your foil.
1150mm Carbon Wing.
Technical Data:
- WINGSPAN: 1150 mm / 45.25 inches
- MAX CHORD: 180mm
- ASPECT RATIO: 7.72
- ACTUAL AREA 1778 square cm / 276 square inches
- PROJECTED AREA: 1713 square cm / 265 square inches
- VOLUME: 2116 cubic cm / 129 cubic inches
Recommended use:
- WING Surfing for all levels and light / medium conditions
- Downwinding - Lighter wind / smaller waves
- SUP / Surf - Tiny bumps and endless gliding
- Wake foiling - Early lift / easiest pumpPump Foiling - Endles
- Windsurf foiling - early and super easy lift
Suggested Rear Wing:
- S-Series 460 Carbon for max speed
- S-Series 440 Carbon for control and stability (all levels)
- S-Series 400 Carbon for looser feel and carvy turns while still maintaining good amount of control (Intermediate)
- S-Series 390 Carbon for Wing Surfing with good turning control and additional glide
- S-Series 370 Carbon for loose feel and even faster turning, with less stability (intermediate / advanced)
- S-Series 340 Carbon for even looser feel and even less drag and more speed. (advanced)
PNG 1010 Glide Front Wing
The AXIS S-Series 1010mm Carbon Front wing is a new generation of high aspect wing, focusing on long, fast gliding and pumping. Using a different foil section than our S-Series 900 and S-Series 1000 carbon wings, the 1010 is designed with Downwinding in mind, while offering tremendous amount of glide, and control.
The 1010 wing is not only a gliding machine. It also works amazingly for SUP and SURF on fast riding small to medium size waves, as well as wingfoiling, pumping and foiling behind the boat.
The S-Series 1010 carbon wing connects to the S-Series fuselages with 3 x M8, 20mm screws.
The graphics on the wings give you all possible measurements so you can best compare and also quickly swap pieces or get new accessories for your foil.
Technical Data:
- MAX CHORD: 160mm
- ACTUAL AREA 1430 square cm / 222 square inches
- WINGSPAN: 1010 mm / 40 inches
- PROJECTED AREA: 1430 square cm / 222 square inches
- VOLUME: 1732 cubic cm / 106 cubic inches
Recommended use:
- Downwinding - High Performance / Lighter windSUP /
- Surf - High Performance / smaller to medium size waves
- Wing Foiling, lighter winds
- Pump Foiling / Wake Foiling
Suggested Rear Wing:
- S-Series 460 Carbon for max speed
- S-Series 440 Carbon for control and stability (all levels)
- S-Series 400 Carbon for looser feel and carvy turns while still maintaining good amount of control (Intermediate)
- S-Series 370 Carbon for loose feel and even faster turning, with less stability (intermediate / advanced).
PNG 910B Front Wing
The AXIS Black Series 910 wing will immediate feel familiar and super easy to ride. But don't get fooled. This wing can be pushed hard, pump for ever, and turn on a dime with tons of speed. The turns are neutral and very well balanced.When surfed, this wing will quickly become your go to setup for most conditions. And when the winds pick up, Wing Surfing with the 910 is loose and fast, while it still foils pretty early.The AXIS 910B carbon wing can be ridden with the tip off the water, and you won't even notice it. Incredibly smooth and well behaved.
The AXIS Black Series 910 carbon wing connects to the Black Series fuselages with 3 x M8, 20mm screws.
As with every AXIS front wing, the graphics on the wings give you all possible measurements so you can best compare and also quickly swap pieces or get new accessories for your foil.
910Bmm Carbon Wing.
Technical Data:
- WINGSPAN: 910 mm / 36 inches
- MAX CHORD: 160mm, 6.3 inches
- ASPECT RATIO: 6.8
- ACTUAL AREA 1268 square cm / 196 square inches
- PROJECTED AREA: 1218 square cm / 189 square inches
- VOLUME: 1458 cubic cm / 89 cubic inches
Recommended use:
- WING Surfing for all levels and medium / stronger conditions
- Downwinding - Medium / higher wind / medium+ wavesSUP / Surf - Medium bumps, Tight turns and high speeds
- Wake foiling - Fast rides, with quicker frequency pumps
- Windsurfing foiling - Smooth easy riding, all conditions
- Kite Foiling - while not designed for kiting, it does ride really smoothly and it's tons of fun for radical freestyle moves.
Suggested Rear Wing:
- S-Series 460 High Aspect Carbon for max speed
- S-Series 440 Carbon for control and stability (all levels)
- S-Series 400 Carbon for looser feel and carvy turns while still maintaining good amount of control (Intermediate)
- S-Series 390GAP Carbon for Wing Surfing with good turning control and additional glide
- S-Series 370 Carbon for loose feel and even faster turning, with less stability (intermediate / advanced)
- S-Series 340 Carbon for even looser feel and even less drag and more speed. (advanced)
