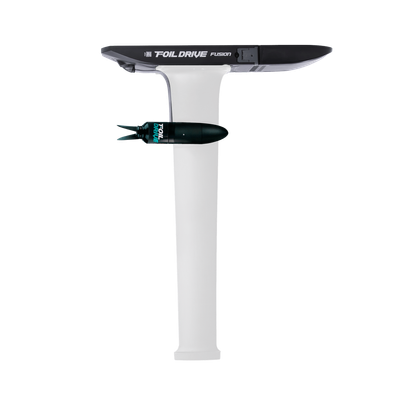

FOIL DRIVE Fusion Complete Kit

With the power and runtime of an Efoil, the lightness and adaptability of an Assist, the Fusion earns its name as the perfect blend of both worlds.

As its name suggests, the Fusion is a true hybrid electric foil system, bringing together the best of both worlds in one neat, versatile package. An Efoil Alternative, the Fusion is the ideal tool for long rides, learners and performance riders alike. Why an alternative? Because the Fusion isn't limited to just an efoil like others. By simply switching to a shorter cable length, it transforms into an extremely powerful, long-runtime Foil Assist.

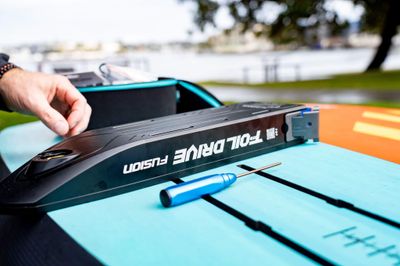

Maintaining the lightweight, sleek, hydrodynamic form of the Assist range, the Fusion delivers greater power and longer runtime thanks to the Fusion 860 Battery (864 Wh) and 43-volt electronics. The battery is a separate, removable unit with a fully enclosed, single-piece housing and integrated nose cone for maximum durability, a higher water rating, and improved long-term reliability. This rugged, self-contained design also makes swapping, transporting, and protecting your power source effortless.

One Tool, Endless Possibilities.

Unlike the other two systems in the Gen2 range, the Fusion doesn't carry the "Assist" in its name. Thanks to its technical advancements, it stands apart in its own subcategory, Gen2.5.

Who is it for?

The Fusion is those wanting an adaptable efoil system OR riders wanting more power and ride time!

• Riders seeking an adaptable and powerful Efoil alternative
• Learners who want stability, longer ride times and smoother progression
• Experienced riders who want more power and more runtime
• Anyone who wants a single system that can do everything including Surf, Wing, Downwind, Wake and Flatwater

KEY FEATURES OF THE FUSION

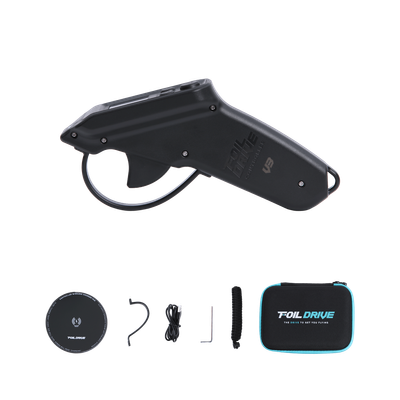

• V3 Controller with GPS speed, distance, and session tracking
• Tilt Sensor (IMU) for automatic motor safety cutoff
• Robust one-piece battery with enhanced BMS and Bluetooth firmware
• 1.45-hour charging with storage mode options
• Slide-in tool caddy, titanium split bolts, and saltwater protection anodes
• Redesigned day-use and storage cases
• Battery Caddy that functions as a USB-A and USB-C power bank and storage discharger (Supplied with Battery)

TECH SPECS:

• System Voltage: 43V
• Battery Capacity Range: 864Wh
• Max Thrust: 34kg / 74.9lbs
• Power to Weight Ratio (Thrust/Weight): 4.35 N/KG
• Minimum Install Weight*: 7.8kg / 17.1lbs with Fusion 860 Battery
• Dimensions with Battery: L658 x W125 x H54mm
• App Compatibility: Foil Drive App, Android and IOS
• Water Rating: IP68 Water and Dust Resistance

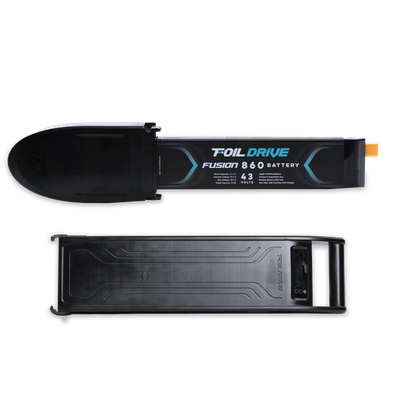

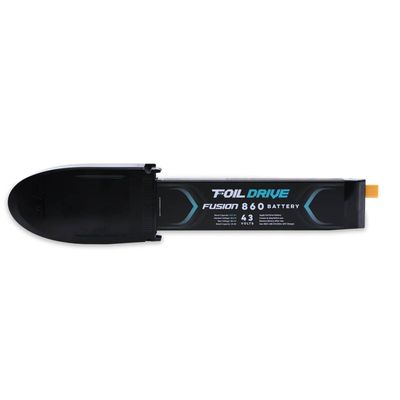

KEY FEATURES OF THE FUSION 860 BATTERY

• Intelligent Bluetooth Module (BMS) connects to the APP for live SoC and Battery Health
• Included Battery Caddy protects your battery and provides discharging options
• One-piece molded design combines the battery and nose cone as a unified sealed unit
• Incredible Power to Weight Ratio, when combined with the Fusion, the distribution of weight under foot makes its extra size almost unnoticeable.

TECH SPECS - FUSION 860 BATTERY

• Rated Capacity: 864 Wh
• Amp Hours: 20 Ah
• Battery Voltage: 43 V
• Nominal Voltage: 43.2 V
• Max Voltage: 50.4 V
• Battery Weight: 7.8 kg (17.1 lbs)
• Power to Weight Ratio (Installed): 4.35 /kg
• Dimensions of Battery: L575 × W122 × H54 mm
• Dimensions Installed:  L658 x W125 x H54mm
• Nose Cone: Not Requires - Integrated
• Battery Type: Lithium-Ion
• Water Rating: IP68 Water and Dust Resistance
• Certified: UN, CE

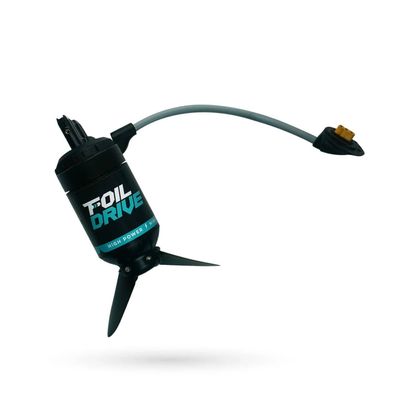

HIGH POWER V2 MOTOR COMPLETE

Increase your runtime and enjoy more low end torque with the High Power Motor!

Through improved efficiency, the motor uses less power, resulting in more time on water. Additionally, the motor has an increase in low end thrust, meaning you get a little more when taking off.

These benefits do result in slightly less top end speed, and do increase weight, but only by 130g! A small compromise for an additional 20% runtime.

V2 Motors

The V2 Motor features a sleeker, more hydrodynamic design. With a 10mm extension to the Motor, it now accommodates a motor plug and offers added versatility with Removable v2 Motor Cables to easily change cable length.
When used in conjunction with the Foil Drive Universal Motor Pods and Mast Adaptors, this motor is compatible with almost any foil mast on the market!

The Cable

The complete set includes a full V2 Motor with 20cm / 8" removable Cable (or your choice of cable length).
Click here to learn about choosing the correct motor length or Click here to learn more about the V2 Motor system

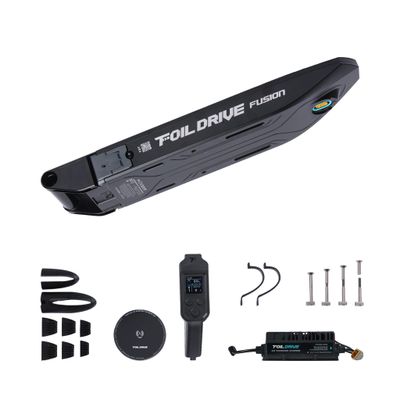

WHAT'S INCLUDED (COMPLETE KIT):

FUSION (BASE KIT):

• Foil Drive Fusion (In Fusion Case)
• Charger AC Lead - AU Plug Type
• V3 Controller with Bump Guard Installed
• Universal Motor Pod
• 43V Standard Charger 12amp w/ selected AC Cable
• 2x Mast Cable Guides
• 1x Tool Caddy (Inside Fusion)
• 4x Titanium T40 M7 Split Bolts Silver
• Controller Accessories Case
• Charge Pad and Cable
• Bump Guard Variation
• Wrist Leash
• 1.5mm Allen Key for Bump Guard Removal
• Tools and Hardware
• T40 Driver
• T30 Driver
• 2x 15g Battery Grease
• 2x Nose Cone Rocker Pads
• 3x M4 10mm Titanium Motor Plug Bolts
• 1x Replacement Anode and 2x Bolts
• 1x Replacement Electronics Box O-Ring (Blue)
• 1x Replacement Motor Plug O-Ring (Blue)
• 1x Replacement Motor Cable O-Ring (Red)
• Microfiber Towel
• Sticker Pack

FUSION 860 BATTERY:

• Fusion 860 Battery
• Foil Drive Battery Caddy
• Fusion Battery Terminal Cap (Yellow Cover)
• Fusion 860 Battery Carry Case

HIGH POWER V2 MOTOR COMPLETE:

• 1x High Power Stator
• 1x High Power Rotor
• 1x Removable V2 Cable (Standard 20cm)
• 1x 3 Blade Hub
• 3x Propellers
• 1x Stubby Cooler
• 1x Puck
