FOIL DRIVE Assist Max+ Complete + AXIS Foil Assist Integrated HM Carbon Mast

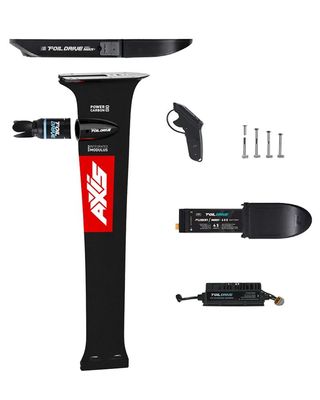

COMPLETE KIT INCLUDES:

• Foil Drive Assist Max+ Base Kit
• FM+ 650 Battery

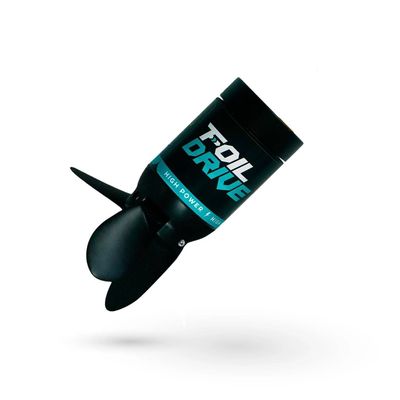

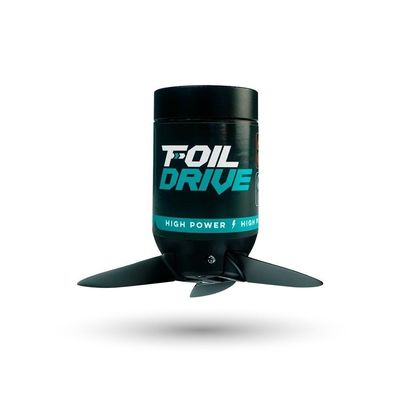

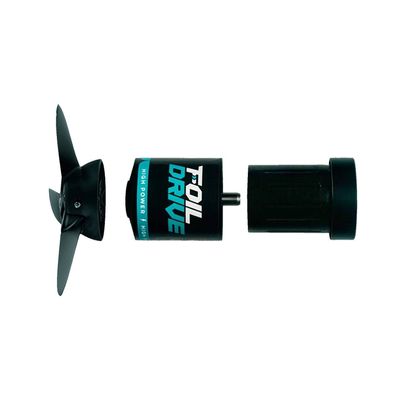

• Integrated Mast High Power Motor
• Axis Integrated Carbon Mast Foil Assist. Length 800mm, Pod Height 15cm

The Foil Drive Assist MAX+ takes everything that the world loved about our most popular foil assist and evolves it into the latest Gen 2.5 class, turning up thrust, runtime, and safety features to unlock autonomy across all foiling disciplines.

Built around the same proven 43V power, tech, and charging architecture of the Fusion, the MAX+ offers our most durable one piece battery design, all while retaining the compact, lightweight and balanced package that made the original MAX so versatile.

Unlock smaller foils, boards, performance, faster take-off, and more time on the water with tilt-safety cut off features that makes this same retrofit kit so family friendly.

The lightweight balance that made MAX the all rounder remains, while everything around it has evolved.

Riders can enjoy a sportier feel without compromising on thrust and boost thanks to the NEW FM+650 Battery (650Wh) and early in 2027 the even smaller, FM+430 Battery.

DETAILS

The Assist MAX+ is built for riders who want the best all-around system that can open up every side of foiling.

• Spend over an hour flying through surf and riding waves.
• Motor upwind to unlock downwind runs without a shuttle
• Practice pumping without wasting energy on repeated tow or surf starts
• Chase wakes from passing boats
• Extra thrust to get onto smaller foils and boards with more confidence and runtime.

From tiny bumps to the biggest waves of your life, MAX+ gives you the freedom to keep flying regardless of the conditions. Surf, lightwind wing, downwind, wake, flatwater or eFoiling, it adds more power, runtime and range to practically any existing foil setup you have already or want to ride, making every session easier to access, more productive and more fun.

TECH SPECS:

• System Voltage: 43.2V
• Battery Capacity Range: 648Wh
• Max Thrust: 35.5kg
• Minimum Install Weight*: 6.71 kg
• Dimensions with Battery: 540x125x55mm
• Peak Power (Boost): 2150W
• Sustained Power: 1750W
• Peak Horsepower: 2.88hp
• Sustained Horsepower: 2.35hp
• App Compatibility: Foil Drive App, Android and IOS
• Water Rating: IP68 Water and Dust Resistance
• Certified:UN38.3, CE, FCC, WEEE, RoHS, PSE, ICES, IP68

*Install weight includes Unit, Battery, Integrated HP Motor, Three Blade Hub and Props, Nosecone (If Applicable) - Retrofit install with mini pod mounted at 20cm increases install weight by 0360g

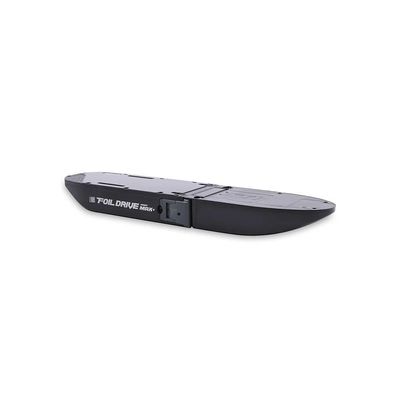

KEY FEATURES OF THE FM+ 650 BATTERY

• Gen2.5 Battery Technology allows the rider to utilise the battery for longer. The battery is able to perform “deeper” into the cycle, meaning on water you’ll be able to enjoy the full power delivery right down to ~10% battery before you begin to notice the “sag” that all batteries experience.
• Charging
  The FM+650 Battery requires 43V Charger (Provided with your Fusion or MAX+ System) to charge. Averaging 85 minute charge time with an industry first Storage Mode that allows you to limit charging to then store your batteries for long-term battery health. We recommend storing you battery between 30 and 60% State of Charge (SoC).
• Intelligent Bluetooth Module (BMS) provides accurate battery data to the V3 Controller, giving clear percentage and status readouts. The Battery also connects to the Foil Drive App where you can name each battery, track its health and view it's battery State of Charge (SoC). Check the surf camera and your battery charge without lifting a finger!
• One-piece molded design combines the battery and nose cone as a unified sealed unit.
  The integrated one-piece molded design combines the battery and nose cone as a unified sealed unit, improving water flow, and durability, all while balancing weight directly over the foil’s center of lift.
• Internal thermal management keeps temperature stable and maintains consistent power through the full discharge curve, ensuring smooth thrust delivery from start to finish.

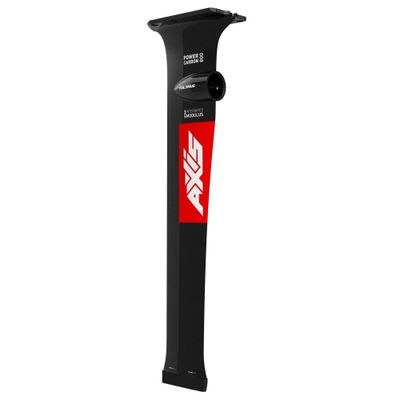

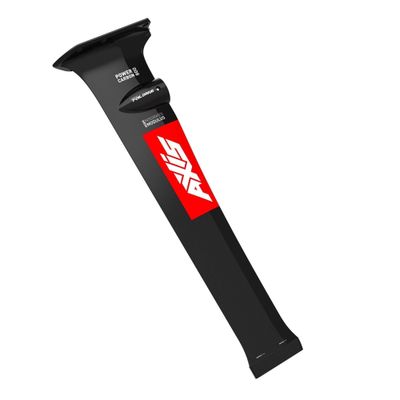

AXIS FOIL DRIVE Foil Assist Integrated Carbon Mast

The Foil Drive Integrated Mast isn’t just an evolution of the aluminium version – it’s the premium expression of what Foil Assist can be. Built from advanced carbon composites in both High Modulus and Ultra High Modulus variants, this system blends strength, efficiency and simplicity into one sleek package. With the Motor Pod positioned 15cm below the baseplate, riders enjoy cleaner hydrodynamics and ample mast length free of drag – creating the smoothest, most intuitive Foil Drive experience yet.

Around the Motor Pod, we’ve expanded the chord and reinforced the cavity with a denser carbon layup, delivering additional torsional strength. Add to that a redesigned baseplate with a slimmer fit to the Foil Drive chassis, and you’ve got an 800mm mast that’s stronger than ever before. With all cables routed inside, the result is a setup that looks clean, rigs fast and feels rock solid under your feet.

This is the premium expression of Foil Assist – a mast that blends AXIS carbon innovation with Foil Drive’s groundbreaking technology. From SUP foilers looking for easy paddle-ups to advanced riders chasing unbroken swells offshore, the Integrated Mast makes progression simple and performance natural.

ASSIST MAX+ COMPATIBLE WITH:

Important: Existing Assist MAX batteries are not compatible with this system.

FM+ 650 Battery
FM+ 430 Battery (Coming Soon)
43V Foil Drive Charger

FM+ Batteries are also compatible with Foil Drive Fusion (requires FM+ Battery Adapter)

V2 High Power Motor
V2 Standard Motor

V2 Controller
V3 Controller

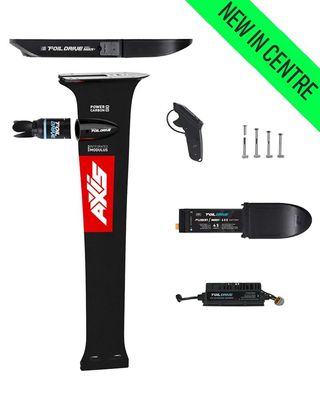

WHAT'S INCLUDED (COMPLETE KIT):

FM+ 650 Battery
Integrated Mast Motor

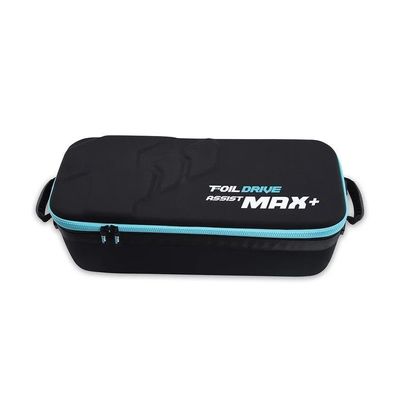

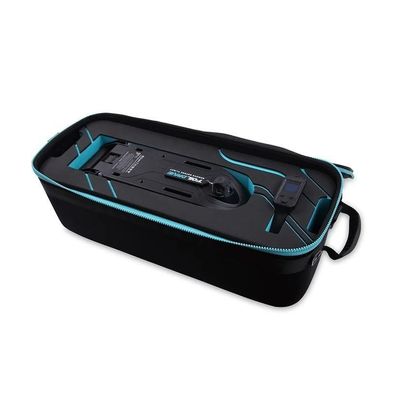

Foil Drive MAX+ (In Case)
V3 Controller with Bump Guard Installed
43V Standard Charger 12amp
4x Titanium T40 M7 Split Bolts Silver

Controller Accessories Case

• USB-C Charge Pad and Cable
• Bump Guard Variation
• Wrist Leash
• 1.5mm Allen Key for Bump Guard Removal

Tools and Hardware

• 1x T40 Driver
• 1x T30 Driver
• 1x 2.5mm Black Titanium Driver
• 1x Pick Tool
• 2x 15g Battery Grease
• 2x Nose Cone Rocker Pads
• 3x M4 10mm Titanium Motor Plug Bolts
• 1x Anode Replacement Kit
• 1x Replacement Electronics Box O-Ring (Blue)
• 1x Replacement Motor Cable O-Ring (Blue)
• 1x Replacement Motor Cable O-Ring (Red)
• 1x Microfibre Towel

Other

• 2x Mast Foam Tracks Guides
• 1x Tool Caddy (Inside MAX+)
• 1x Sticker Pack
• User Manuals

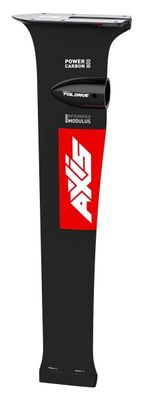

AXIS INTEGRATED HM CARBON MAST

• Foil Assist Length 800mm, Pod Height 15cm
